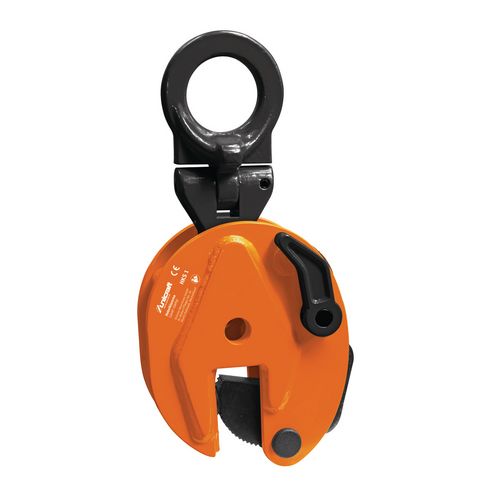

Plötuþvinga 0,5t 0-16mmCX Plate Clamps are a more robust, heavy-duty model of the CY clamp. The CX clamp has a reinforced plate at the top of the mouth and a heavy-duty hook ring. The CX clamp is more suitable for turning vertically racked plates.
Used on all hot rolled structural steel plates and sections up to a surface hardness of 300 Brinell (32HRc)
Lifts plates from horizontal to vertical position and vice versa through 180º
Vertically racked plates can be turned over due to the built-in lifting eye and link
Clamps can be used with 2 leg slings
Design factor 4:1
For vertical lifting, 180 ° turns and side impacts of metal sheets, steel plates, girders and steel components
The safety locking by means of a locking lever ensures slipping of the gripper from the transported goods even without tensile load
The minimum load is 10% of the stated load capacity
The surface hardness of the cargo must not exceed HRC 30
